AI 103

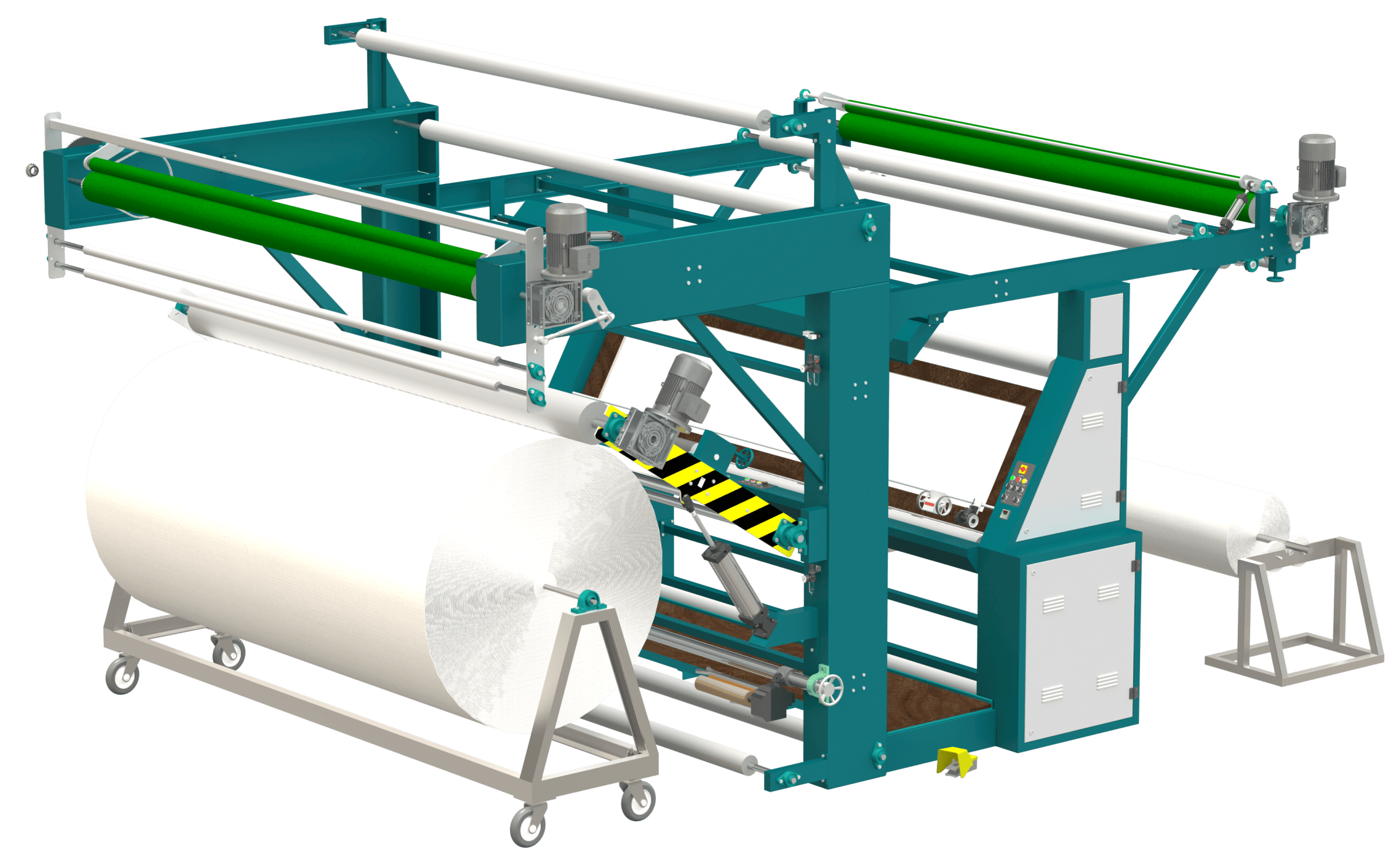

Fabric Weaving Mills, Fabric Distributors of the Fabric dealing requires Multi functional Inspection Machine. As they have huge meter of Fabrics to be checked continuously, ABZ INDUSTRIES has introduced, Gray fabric Inspection Machine AI 103, to meet their requirements.

It’s a Multi functional Machine for all types of Fabrics. Along with making perfectly aligned Rolls, Batching and Plaiting (either in Front or Back) align rolls. It also has auto Edge alignment system to make neatly aligned Rolls with the help of cloth guider.

The Plaiting can be done on the back side with ease and convenience. This machine increases the productivity, as compared to the Manual Fabric Inspection. It’s a very convenient equipment to inspect thousands of meters of fabric.

Batching

Both gray and finished fabric can be rolled into big batch and let the fabric be in any form. Big batch rolls save large quantity of fabric that would be wasted end thus preventing loss of valuable fabric.

Features

  • For gray or finished woven fabrics with accessories like meter counter, selvedge guiders, top & backlit inspection table, AC drive or inverter driver or inverter drive for variable speed.
  • Larger working widths up to 4.0 mtrs.

Technical Specification

Working Width : 1150 to 4000 mm
Max. Dia. of Batched Roll : up to 1500 mm
Fabric Tension : Automatic / Manual
Fabric at Outlet : Batching system with pneumatic cylinder
Inspection table : Inclined 30 ̊ for comfortable visual
Machine structure : Fabricated Mild steel frame with tie bars
Speed : 0 to 50 mtrs./ min.
Electric Power : 2 HP (Three Motor)
Supply : 220W, 3 Phase, 50Hz
