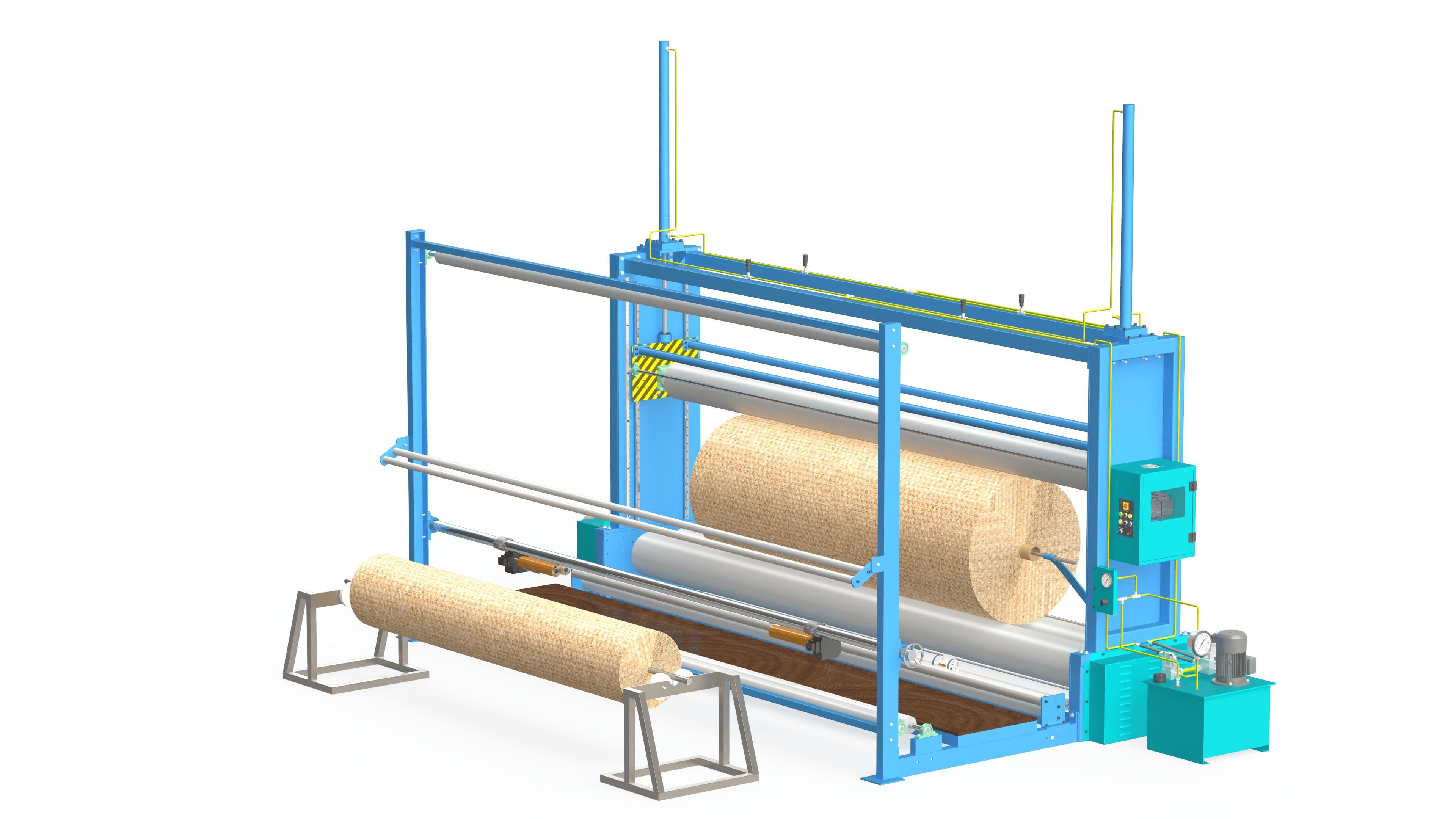

AI J 601
Features
- Hydraulic cylinder for hydraulic pressure and total accessories with internal pipe line.
- Hydraulic cylinder for hydraulic pressure and total accessories with internal pipe line.
- Machine frame in mild steel construction
- One a.c drive for variable speed emerson ct make
- One a.c. Gear motor euro technika or equlent make
- Start, stop function and more customized options
- Mechanical fabric tension device
- Cloth measuring by precise mech. Counter meter
- Paper tube use to 1" to 3" inch dia meter.
- Hydraulic pressure roll systems for tight rolling.
- A.c. Drive for infinitely variable speed of 5 to 35 mtr/min
Technical Specification
Working Width | : | Up to 5000 mm |
Synchronize Roll Dia. | : | Up to 1500 mm |
Speed | : | 5 to 35 mtrs/min |
Fabric tension | : | Automatic / Manual |
Hydraulic Cylinder | : | Heady duty with power pack |
Pressure valve panel | : | Operating manual |
Power supply | : | Main electric power
(440 Watt A.C. +/-10%, 3Phase, 50Hz) Installed electric power 10HP (1440RPM) One Gear Moror |

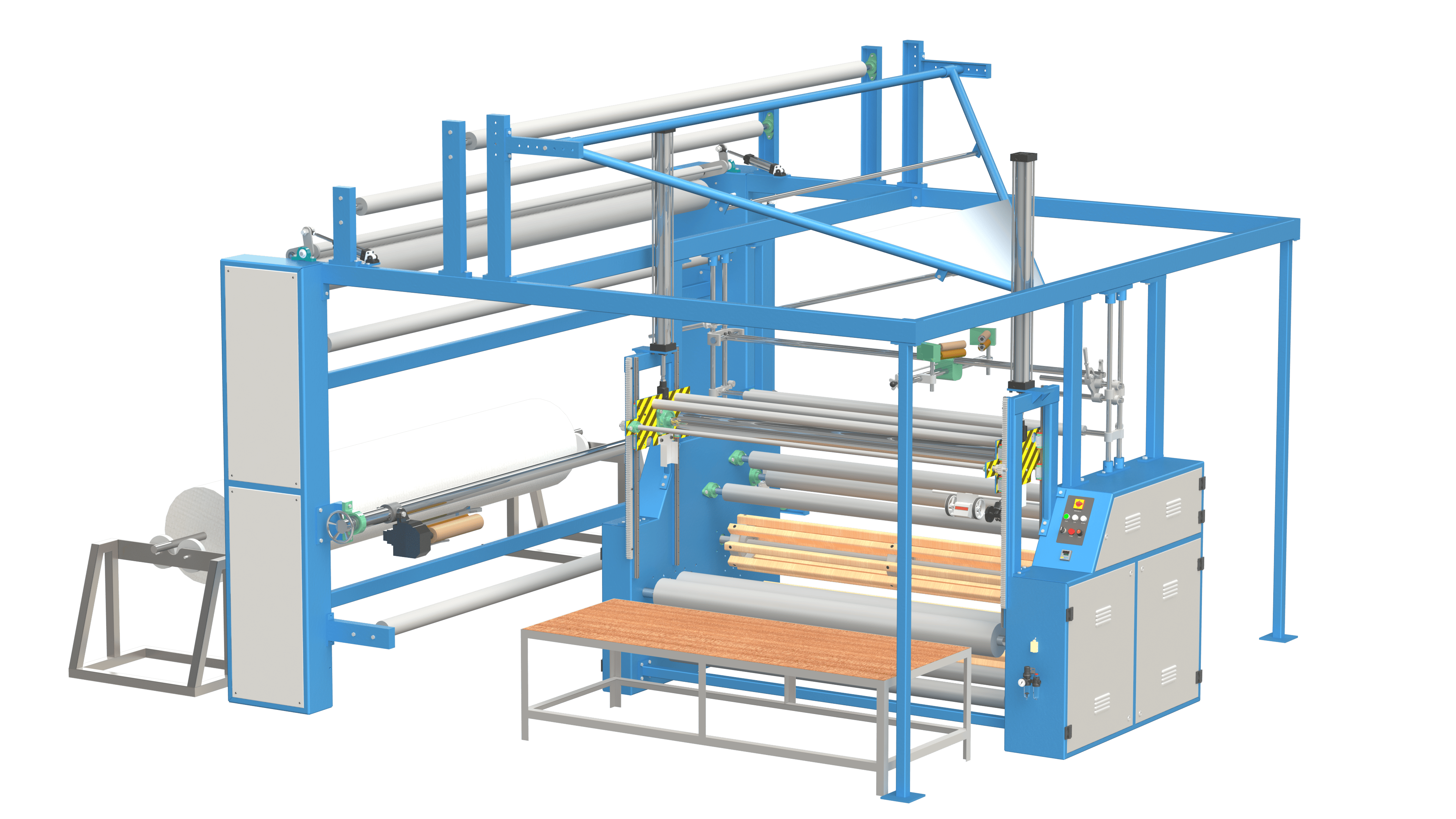

AI J 602
Features
- Machine frame in mild steel construction
- S. S. 304 double fold attachment 98" width
- Two A.C. drive for variable speed variable speed emerson ct make
- Two A.C. Gear motor standard make
- Start, stop and reverse function.
- Mechanical fabric tension device
- Cloth measuring by precise mech. Counter meter
- Stretch fabric control by scroll roll or bow pipe.
- A.C. Drive for infinitely variable speed of 0 to 35 mtr/min
Technical Specification
Working Width | : | Up to 2500 mm |
Double fold Rolling working width | : | Up to 1250 mm |
Speed | : | 0 to 35 mtrs/min |
Fabric tension | : | At inlet E+L guider / at folding electrical guiders |
Fabric at outlet | : | On twin roll with pneumatic cylinder pressure system |
