AI 104

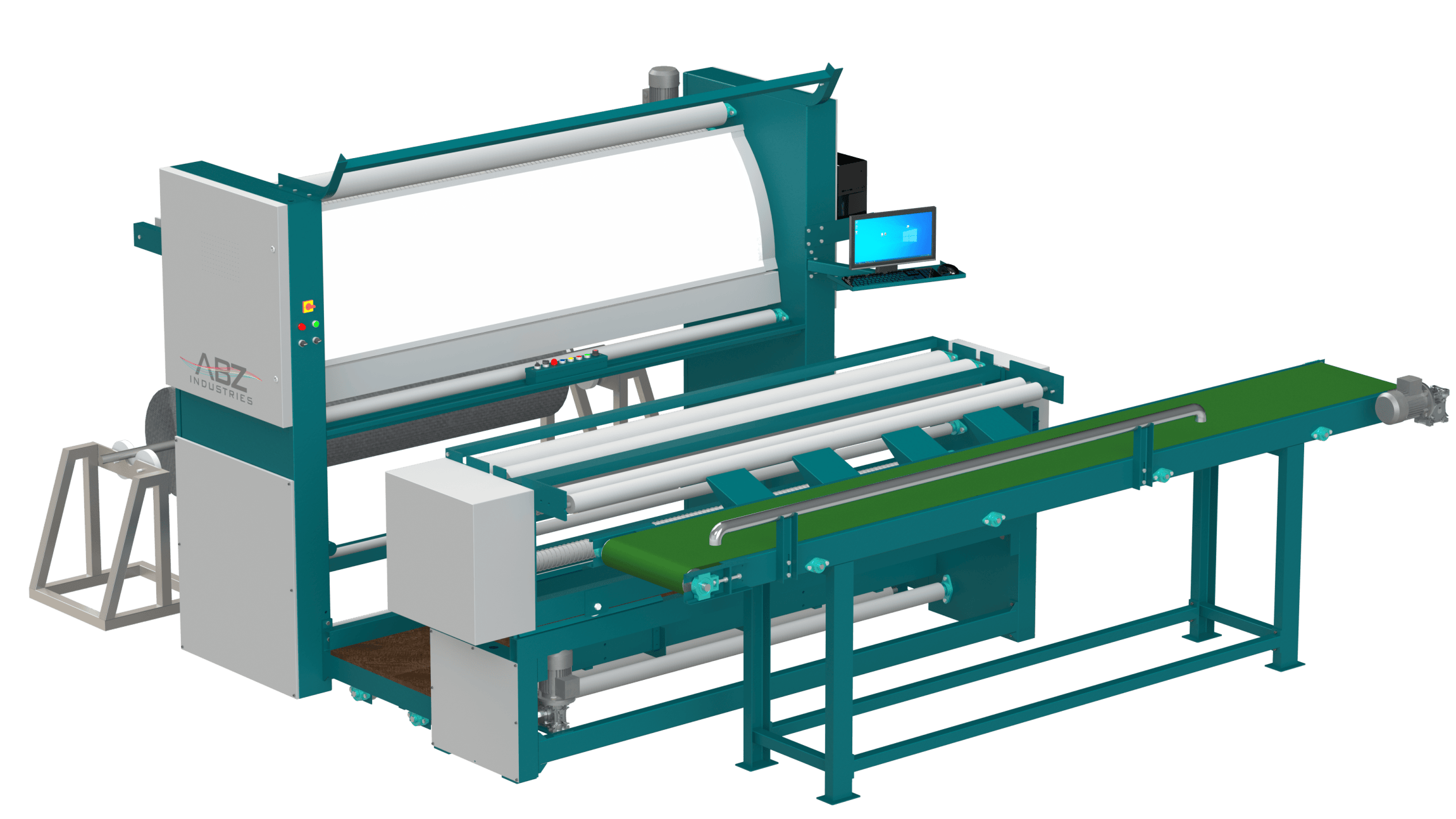

The AI 104, open width tensionless inspection and high speed measuring machine with Electrical Controlled web guiding system is supplied to handle a wide range of rolled materials, from tension sensitive electrometric and all fabrics to stable knit, woven, technical and upholstery materials.
The operation of the inspecting, measuring and winding up machine is extremely important in the production process. The applied tension on the fabric while inspecting, measuring and winding must not were the outcome of the finishing treatment.
Therefore, the ABZ INDUSTRISE Inspection machine type AI 104 is equipped with a dancing-roll which control the tension applied on the fabric and assure the perfect fabric measurement and selvedge alignment.
Features
- Machine frame in mild steel construction
- Three A.C. drive for variable speed emarson UK make
- Three A.C. Gear motor euro technika or equvalent make.
- Two A.C. Flange motor for M. S. Powder coated scroll roll
- One A.C. Gear motor for edge web guiding system
- Drive roll dia 165mm made in M.S. Covering with rubber fillet
- Four nos. M. S. Powder coated scroll roll
- Ten nos. M. S. - guide roll - powder coated
- Electronic synchronize between three motors for dancing roll for even fabric tension
- Stretch fabric control by M. S. - scroll roll- 4 nos.
- Electro - mechanical web guiding system with photo-cell sensor and electrical control
- Cloth roll feeding maximum 400 mm diameter.
- A.C. drive for infinitely variable speed of 0 to 50 mtr./min.
Technical Specification
| Working Width | : | Up to 4000 mm |
| Roller face width | : | 2500 mm |
| Speed | : | 0 to 50 mtrs/min |
| Fabric tension | : | Automatic |
| Inspection table | : | Inclined 30˚ table with curved surface for perfect visual |
| Power supply | : | 220W, 3 Phase, 50 Hz |
